Available now, in stock ! Fully tested !

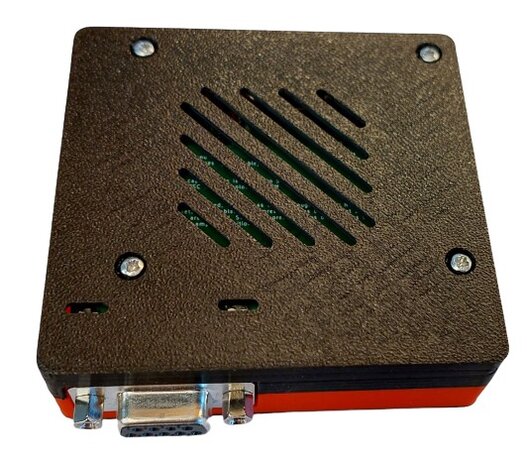

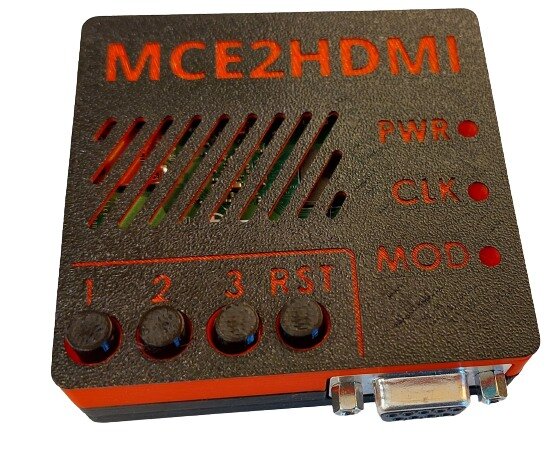

MCE2HDMI : MDA, CGA, EGA, Hercules to HDMI converter
Features :
- 9 pin DSUB female connector for MDA/CGA/EGA/Hercules compatibility
- Supports MDA, CGA, EGA, Hercules video modes. Including Composite CGA.
- Full size HDMI connector output

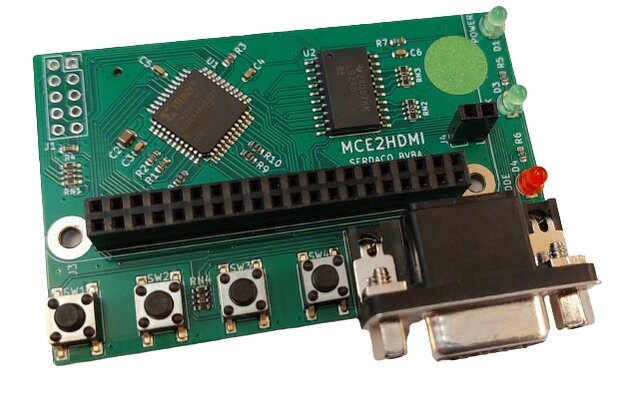

- Compatible with hoglet67's RGBtoHDMI project, uses CPLD that is flashed and updateable by this software. See the Quick Start Guide.

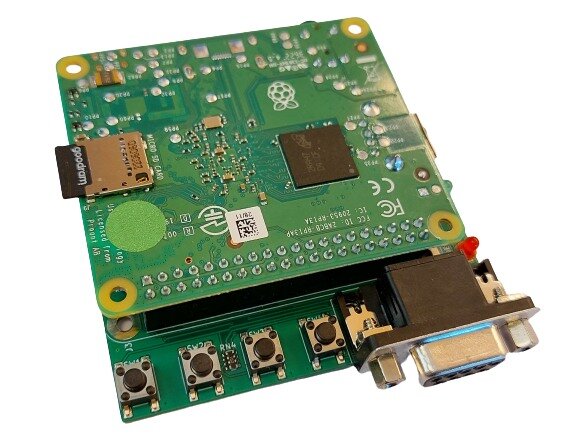

- PI3A+ form factor with high quality enclosure
- Approximate dimensions : 80mm x 80mm x 25mm
- Weight (with enclosure) : 90g
- Powered by micro USB connector :
- The average power consumption 350mA, but the adapter is recommended to support peaks up to 2A.
- The official Pi 3 power adapter (5.1V) will work great
- Alternatively, you can use a compatible micro usb adapter (minimum 2A), for example the one available as option (EU plug).
- Optional conversion dongle to convert HDMI to VGA
MCE2HDMI Connectors :
EGA DB9 pinout :
Optional extension : HDMI to VGA dongle, tested, compatible with MCE2HDMI
MCE2HDMI Review by Retro Erik :
