AVAILABLE NOW !
TM32 is a MIDI synthesizer that supports General MIDI / GS SF2 soundfonts and optional MT32 emulation
The software is based on the open source
MT32Pi, with a tweaked configuration for excellent live performance, preloaded with default GeneralUser GS soundfont.
Complete fully built and tested unit, including enclosure.
TM32 is the successor to
MP32L which is still available until end of stock.
Features :
- High Quality Stereo DAC, 3.5mm stereo line out
- Standard DIN MIDI input
- Micro SD card slot for MT32Pi based software
- USB-C connector for power (for 5V 2A adapter)
- Uses Pi zero 2W, 512 mbyte of RAM
- High quality enclosure with TM32 led glow logo, dimensions : 81mm x 75mm x 26mm , 74g
- Supports SF2 soundfonts up to 400mbyte, 16 part multitimbral (all 16 midi channels)
- Optional support for MT32 emulation (need to supply your own ROM files on the micro sd card)
- 128 voices polyphony
- Low latency
- Switch between soundfonts with the press of a button

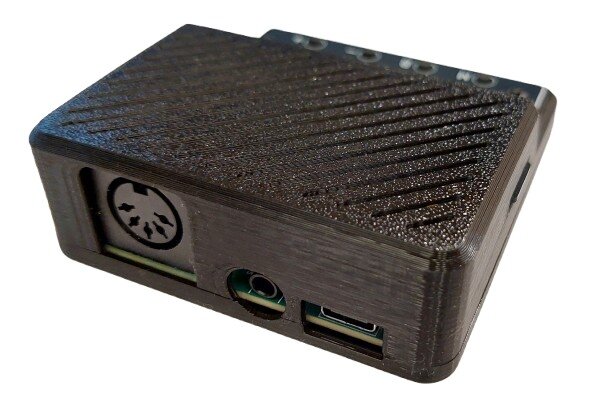

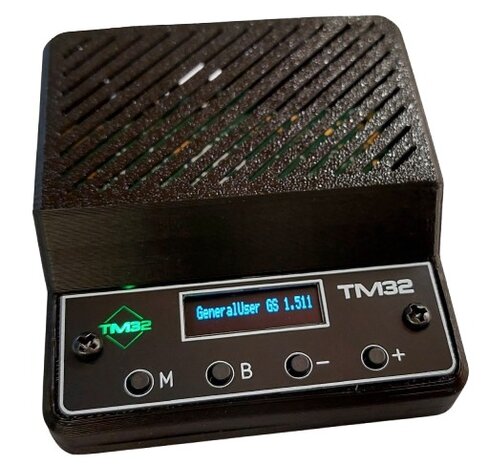

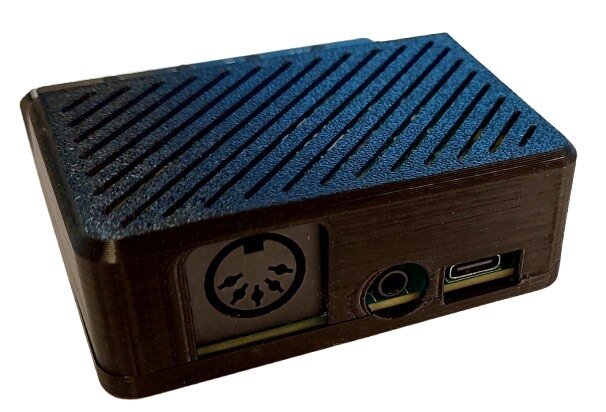

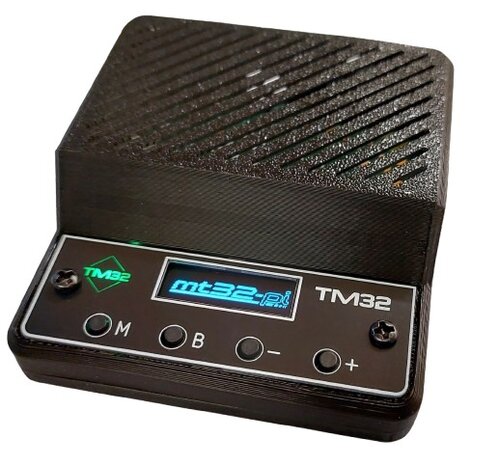

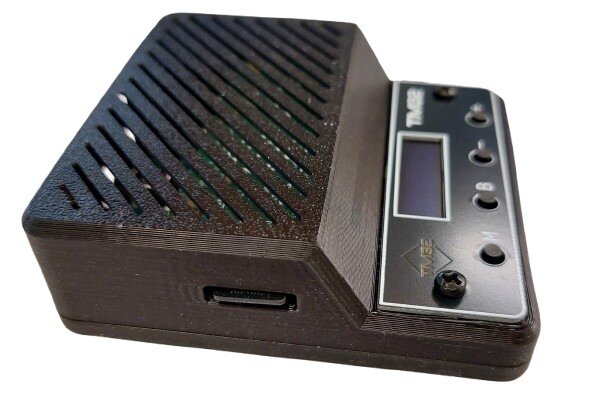

See illustration below :
