CVX4 Vogons Tuning Edition
CVX4 Vogons Tuning Edition
Couldn't load pickup availability
New high end Vogons Tuning Edition available now.

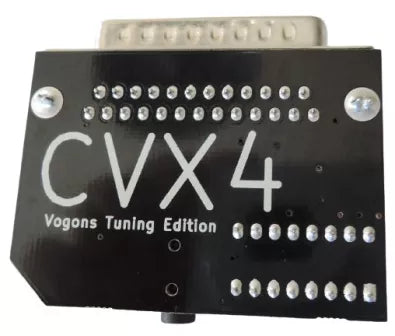

Parallel port soundcard with high quality tuning options, compatible with Covox Speech Thing
Line out connection, intended to connect to amplified speakers

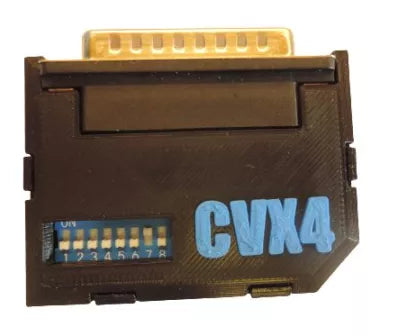

Optional Dual Color high quality enclosure.
No compromises, we wanted to make the best possible covox clone, and did not spare effort or expenses :
after building 3 prototype generations (CVX1, CVX2, CVX3), this is now the final version :
CVX4 uses very high precision 0.1% all same value resistors, and a reverse engineered schematic (based on a real original covox) for excellent 8 bit sound. Other DIY clones use 1% or 5% resistors, different schematic, ...you can compare... CVX4 sounds way better...
Added low pass tuning options to simulate speaker effect to your own taste.

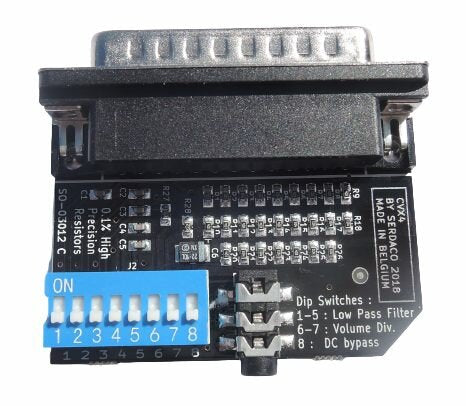

Dip switch legend :
dips 1-5 : low pass filter
2: 4.7nF : heavier low pass filter
3: 10 nF : very heavy low pass filter
4 : 0.1nF : very subtle low pass filter
5 : 0.47nF : subtle low pass filter
dip 6-7 : extra volume divider :
7 : 27k (1/4R)
dip 8
Dip settings for authentic Covox' sound : dip 7 on, other dips off.
Example DIP switch settings :
| DIP SWITCH Position : (1-2-3-4-5-6-7-8) |
Result : |
|---|---|
| E-D-D-D-D-X-X-X | low pass filter set medium |
| D-E-D-D-D-X-X-X | low pass filter set heavy |
| D-D-E-D-D-X-X-X | low pass filter set very heavy |
| D-D-D-E-D-X-X-X | low pass filter set very low |
| D-D-D-D-E-X-X-X | low pass filter set low |
| X-X-X-X-X-E-D-X | extra volume divider set half |
| X-X-X-X-X-D-E-X | extra volume divider set a quarter |
| X-X-X-X-X-X-X-E | bypass decoupling capacitor |
Legend: E = (e)nabled or on; D = (d)isabled or off; X = doesn't matter
