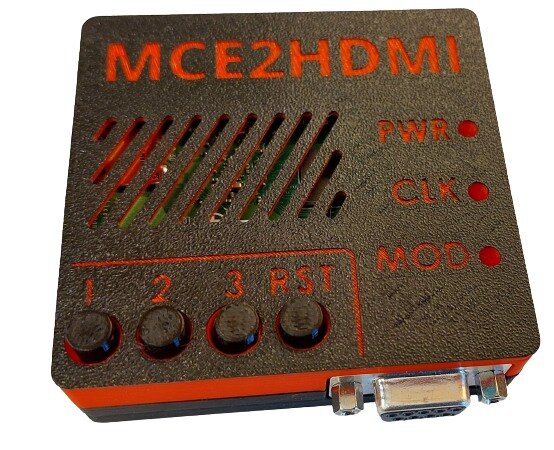

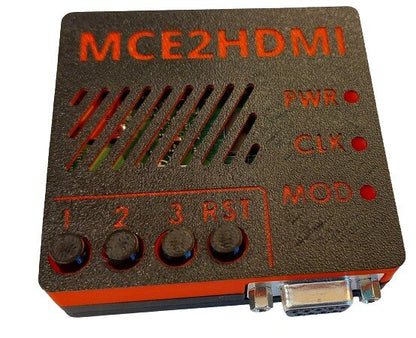

• MCE2HDMI top
  • MCE2HDMI top

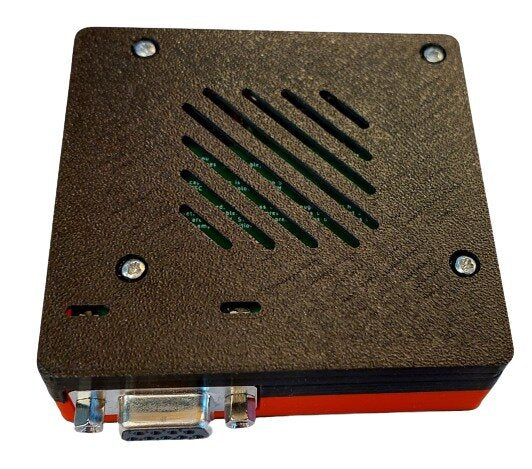

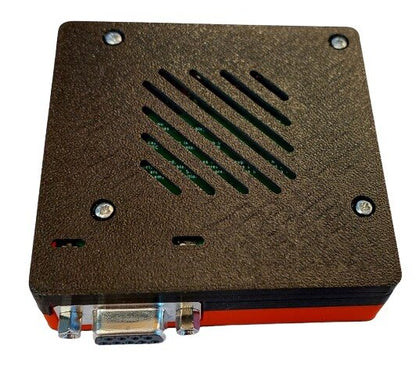

  • MCE2HDMI bottom

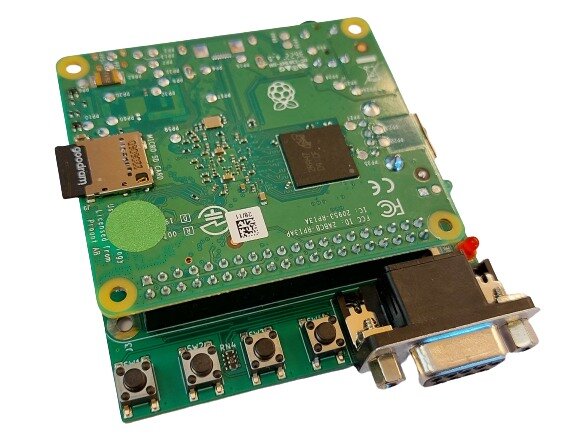

  • MCE2HDMI PCB+PI

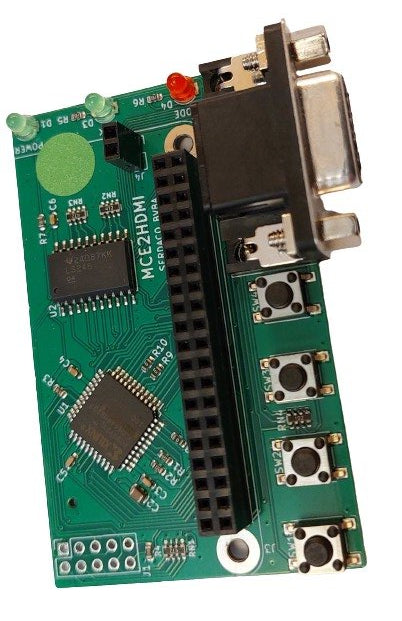

  • MCE2HDMI PCB ONLY
1 5

Serdashop

MCE2HDMI

MCE2HDMI

€121,00 EUR
€121,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Available now, in stock ! Fully tested !
MCE2HDMI :  MDA, CGA, EGA, Hercules to HDMI converter
Features :

  • 9 pin DSUB female connector for MDA/CGA/EGA/Hercules compatibility
  • Supports MDA, CGA, EGA, Hercules video modes. Including Composite CGA.
  • Full size HDMI connector output
  • Compatible with hoglet67's RGBtoHDMI project, uses CPLD that is flashed and updateable by this software. See the Quick Start Guide.
  • PI3A+ form factor with high quality enclosure
  • Approximate dimensions : 80mm x 80mm x 25mm
  • Weight (with enclosure) : 90g
  • Powered by micro USB connector :
    • The average power consumption 350mA, but the adapter is recommended to support peaks up to 2A.
    • The official Pi 3 power adapter (5.1V) will work great
    • Alternatively, you can use a compatible micro usb adapter (minimum 2A), for example the one available as option (EU plug).
  • Optional conversion dongle to convert HDMI to VGA

MCE2HDMI is intended for DOS gaming, but can also be applied to other devices that output standard MDA/CGA/EGA/Hercules video signal :
Examples of known compatible industrial devices  :

  • Hofmann Geodyna 35-3

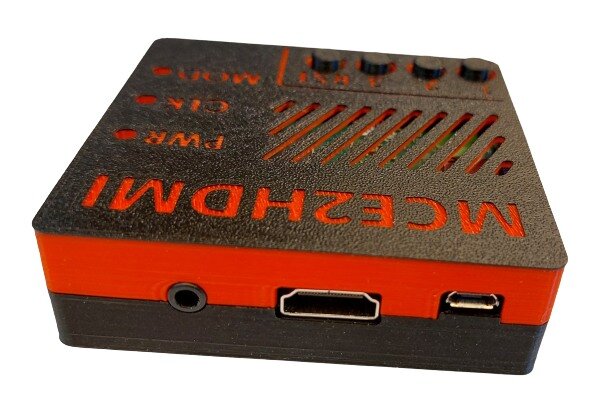

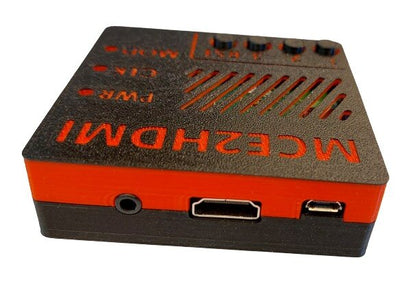

MCE2HDMI Connectors :


EGA DB9 pinout :


Optional extension : HDMI to VGA dongle, tested, compatible with MCE2HDMI


MCE2HDMI Review by Retro Erik :


MCE2HDMI demo by Pekka :
