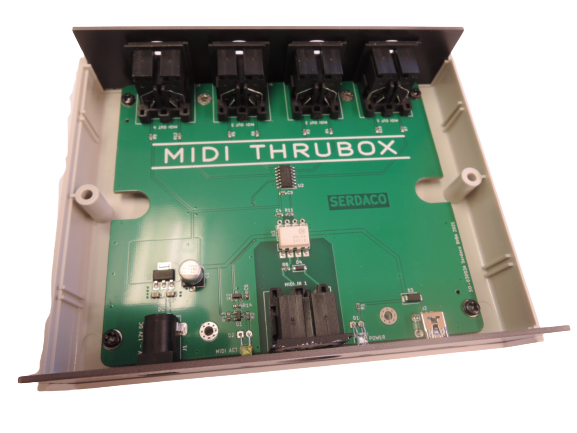

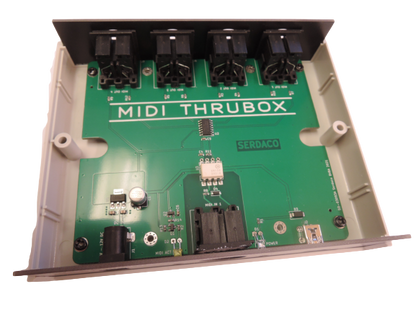

MIDI THRU BOX

€32,67 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

High quality MIDI THRU box features :

Dual power options :
- mini USB 5V power inout
- 9V DC barrel input (range 7V - 13V), center negative, 2.5mm x 5.5mm plug
1 x MIDI IN, properly optically isolated

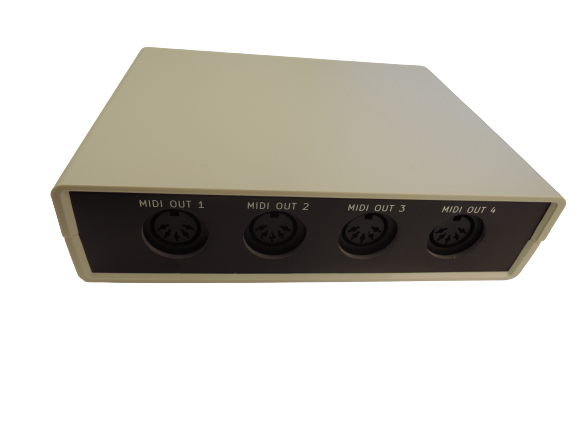

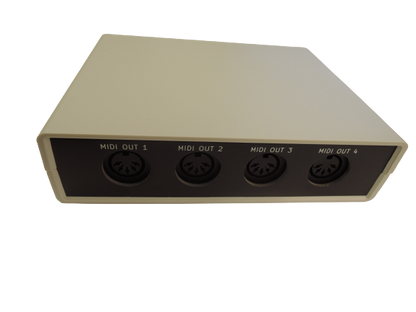

4 x MIDI OUT
MIDI activity LED and Power LED
Available as through hole solder kit and presoldered + tested board
High quality enclosure option

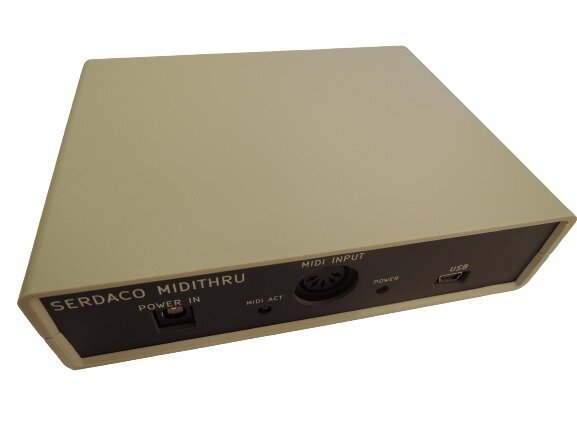

MIDI THRU enclosure:

MIDI THRU Easy Solder Kit :

Only need to solder the through hole connectors and leds

MIDI THRU Kit

Solder kit instructions :

Solder all connectors.
Pay special attention to the LEDs
- if intending to build into enclosure, leave 7mm legs to allow to bend properly
- respect LED polarity (see reference below)

Low stock: 4 left
