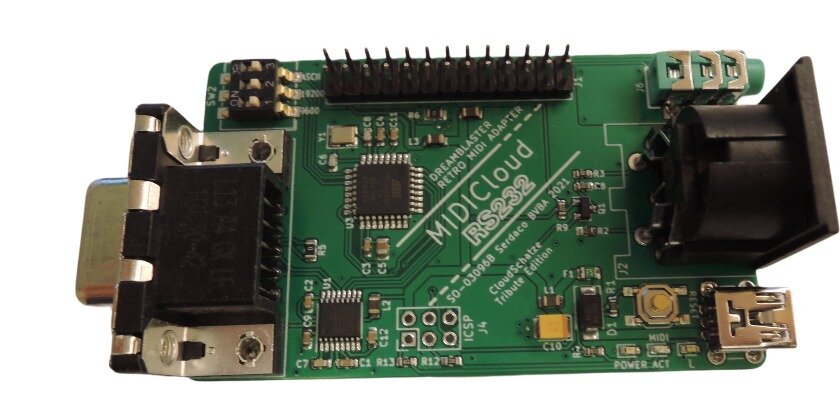

MIDICloud RS-232
MIDICloud RS-232
Regular price
€43,56 EUR
Regular price
Sale price
€43,56 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

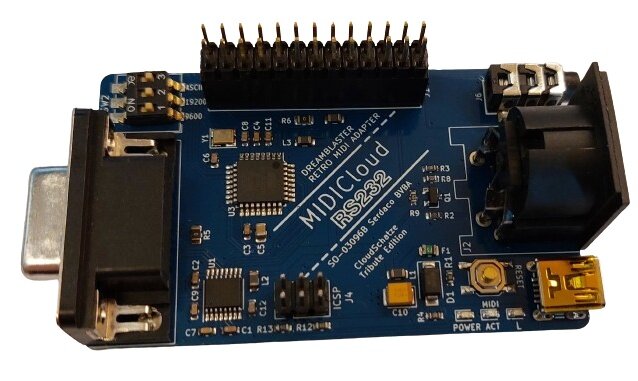

MIDICloud RS232 Waveblaster Adapter, 'CloudSchatze Tribute - Blue Edition'
Completely soldered, programmed and tested boards.
RS232 to Waveblaster and MIDI interface, compatible with SOFTMPU
DIP positions :
DIP 3 : OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection
Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1
Completely soldered, programmed and tested boards.
RS232 to Waveblaster and MIDI interface, compatible with SOFTMPU
- high quality PCB
- fits on 9 pin serial port
- MIDI output DIN connector
- Waveblaster header for modern small waveblaster boards (McFly, S2,X2, X2GS, E-Wave)
- 5V supply through USB mini connector
- DIP switches for advanced settings
DIP positions :
DIP 3 : OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection
| Baud Rate table | DIP 1 = OFF | DIP 1 = ON |
| DIP 2 = OFF | 38400 | 9600 |
| DIP 2 = ON | 19200 | 4800 |
Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1
Out of stock
Manufacturer & Safety Information
Manufacturer & Safety Information
Serdaco BV (trading as Serdashop)
Abdijlaan 37, BE-8460 Oudenburg, Belgium
centraldesk@serdaco.com
VAT BE 0837.512.945
Serdaco BV is the manufacturer of its own products, and the EU importer for items made by others.
Product identification — the product name and variant shown on this page. Type and revision are marked on the product or its packaging.
Safety information
- Bare circuit boards are static-sensitive. Handle by the edges, with anti-static precautions.
- Switch off and unplug the host device before installing.
- Use within the ratings marked on the product. Don't use damaged cables or adapters; mains adapters are for indoor use only.
- Contains small parts. Keep out of reach of children.
- At end of life, hand in electrical equipment at a local collection point (WEEE) rather than with household waste.
