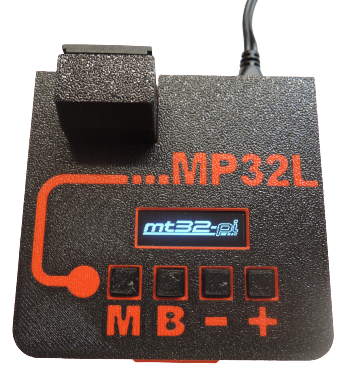

• MP32L Top View

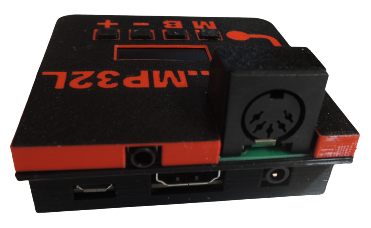

  • Side view

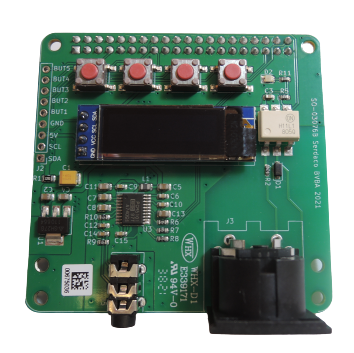

  • MP32L PCB

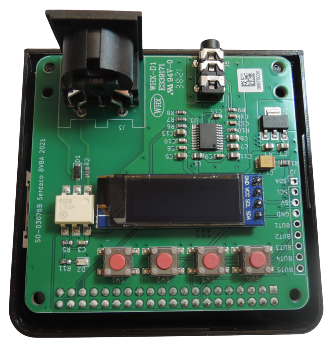

  • Top view
1 5

Serdashop

MP32L : MT32-Pi compatible MIDI module

MP32L : MT32-Pi compatible MIDI module

€50,82 EUR
€50,82 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
If this is out of stock, have a look at TM32 instead, as an alternative.
TM32 is the newer version of MP32L.

MP32L : MT32 / Soundfont compatible synthesizer module, based on raspberry pi
MP32L can play SF2 soundfonts and emulate MT32 (when providing the ROM files).
Compatible with MT32-Pi config files : see more information here :  Example MP32L config here.
Find more information on MT32 synthesis configuration here.

Features of MP32L :
  • high quality DAC
  • 3.5mm stereo line out
  • Properly Opto-Isolated MIDI DIN input
  • OLED display : black background, white pixels
  • Power supply input : IMPORTANT
    • PI3A : USB Micro connector, 5.1 V, min 2.5A  --> recommended to use official raspberry pi power supply
    • PI4B : USB C connector, 5.1 V, min 2.5A --> recommended to use official raspberry pi power supply
    • Average power consumption is 500mA, but peaks up to 2A should be supported by the adapter
  • Control Buttons for easy operation
  • Optional 3d print enclosure, easy to put together
MP32L Ready To Run options :
  • DIY option :
    • Assembled high quality MP32L Pi Hat PCB with button controls and OLED screen
    • You need to add your own raspberry pi, micro sd card, ..
    • Intended for tinkerers
MP32L PCB
  • Ready to run option PI 3A+ :
    • Complete tested setup, including
      • MP32L PCB

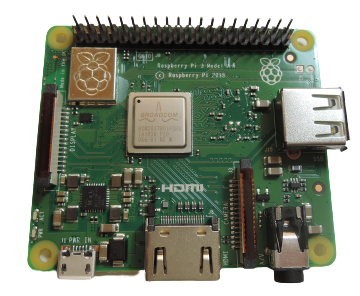

      • PI 3A+
      • preinstalled 16GB micro SD card (configured for General User SF2 playback)
    • Only steps needed are : put the 2 boards on eachother, and (optionally) put it in the 3d print enclosure.
    • Recommended option for getting started without trouble
MP32L Ready to Run
Enclosure for Pi 3A+
  • high quality enclosure that fits on Pi 3A+
  • available in black/red and black/blue colour scheme
  • easy to assemble / disassemble
  • STL files available here , if you wish to print this yourself, or modify the design
MP32L Enclosures for PI 3A+
Enclosure for Pi 4B/3B
  • high quality enclosure that fits on Pi 4B/3B
  • available in black/red and black/blue colour scheme
  • easy to assemble / disassemble
  • STL files available here , if you wish to print this yourself, or modify the design
MP32L 4B colour options
DOS PC connectivity options :
  • 1M Quality MIDI Cable
  • DB15MIDI interface to connect to your soundcards Joystick/MIDI port
DB15 MIDI Cable options


MP32L Controls :








MP32L demo : Space Quest III (MT32 emulation)


MP32L demo : Zeliard (MT32 emulation)


MP32L demo : Doom E1M1 (general midi - General user soundfont)


MP32L demo + tutorial by Retro Erik


Overview of MP32L and other sound cards by Retro Erik :
