Completely soldered, programmed and tested boards.

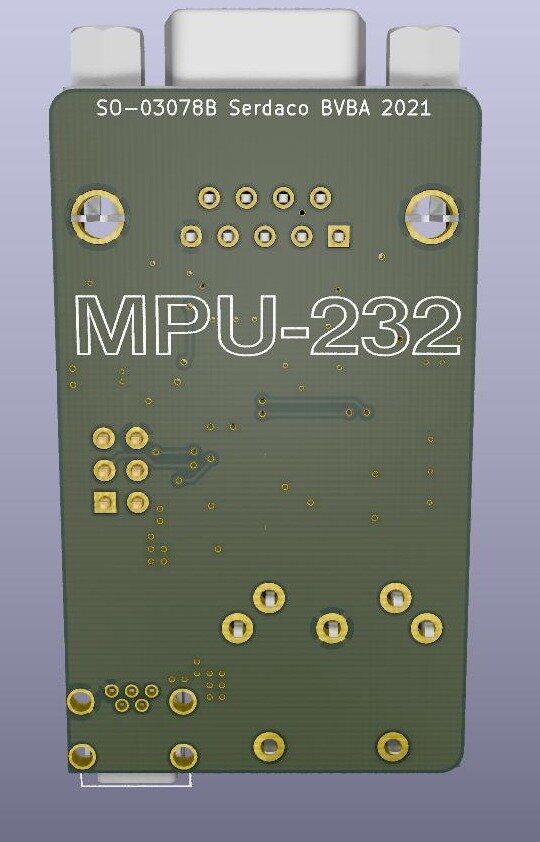

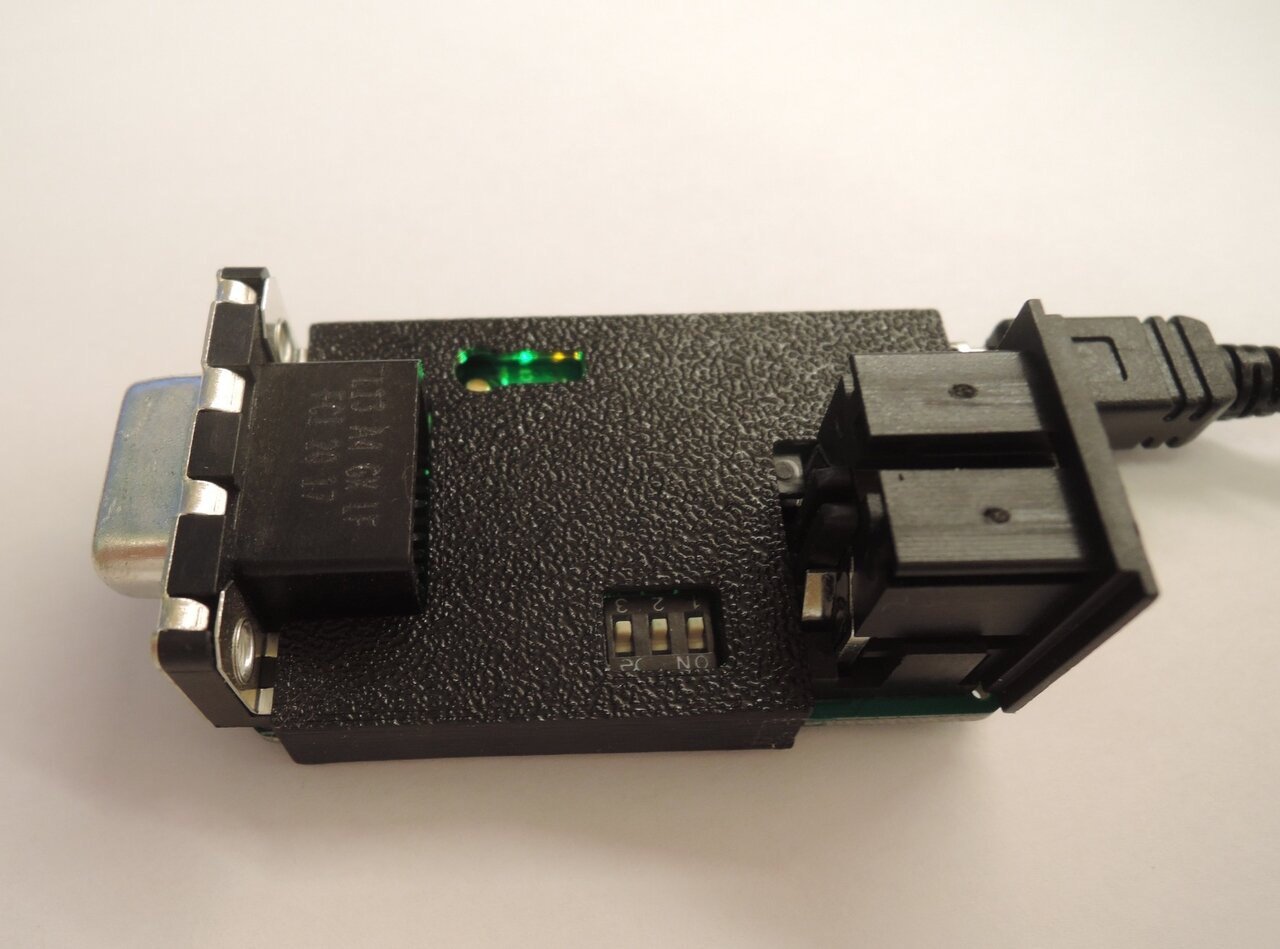

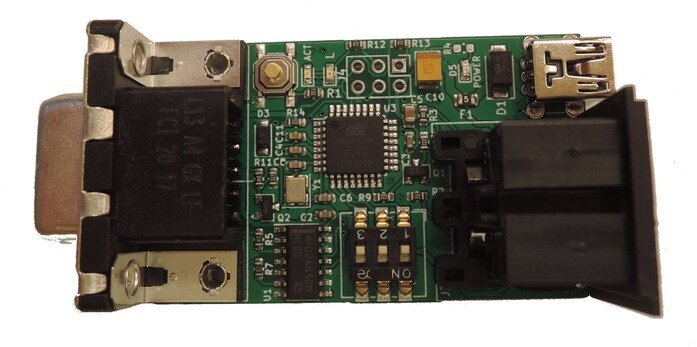

MPU-232 : RS232 to MIDI interface, compatible with SOFTMPU
DIP positions :
DIP 3 : OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection
Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1
MPU-232 demo by Retro Erik :
Sam and Max Demo using SOFTMPU :
Reams of Chaos demo using SOFTMPU :
Demo by Retro Erik on XT :
MPU-232 : RS232 to MIDI interface, compatible with SOFTMPU
- small size, high quality PCB
- fits on 9 pin serial port
- MIDI output DIN connector
- 5V supply through USB mini connector
- DIP switches for advanced settings
DIP positions :
DIP 3 : OFF = binary mode, ON = ASCII mode
DIP 1 + 2 : baud rate selection
| Baud Rate table | DIP 1 = OFF | DIP 1 = ON |
| DIP 2 = OFF | 38400 | 9600 |
| DIP 2 = ON | 19200 | 4800 |
Usage with SoftMPU :
SoftMPU uses 38400 baud, binary mode.
--> Set all dips to OFF to use with SoftMPU. (this is the default state of the dips).
Set the output device of softmpu to your com port : for example :
SOFTMPU.EXE /MPU:330 /OUTPUT:COM1
MPU-232 demo by Retro Erik :
Sam and Max Demo using SOFTMPU :
Reams of Chaos demo using SOFTMPU :
Demo by Retro Erik on XT :
Low stock: 5 left
